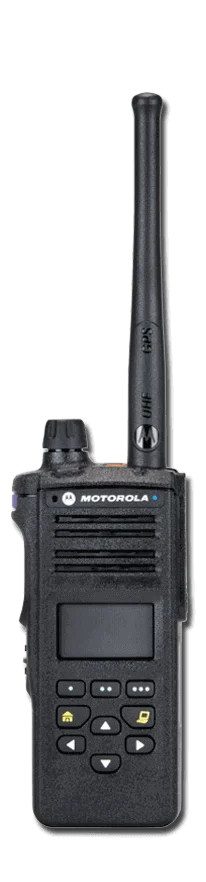

Motorola APX 4000
Motorola
APX 4000
The APX 4000 delivers all the benefits of P25 Phase 2 technology in a compact and powerful portable radio. Easy to use, tough as nails, at a value that's hard to beat, it connects first responders with each other, and with public works, utilities and rural public safety users for fast, seamless communications.
Durable enough to withstand dust, heat, shock and submersion, the APX 4000 is IP67 and MIL-STD certified. It's packed with key features to help keep you safe, like mission-critical wireless, two-microphone noise suppression, GPS outdoor location and AES encryption.
Performance Characteristics
Frequency Band:
700 MHz, 800 MHz, 900 MHz, UHFR2, UHFR1, VHF
Frequency Range:
700/800 (763-776, 793-806, 806-824, 851-870 MHz)
900 (896-901, 935-940 MHz)
VHF (136-174 MHz)
UHF R1 (380-470 MHz)
UHF R2 ( 450-520 MHz)
Power Output:
1-5 Watts Max
Number of Channels/Groups/Zones:
512 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
8-10 hours
Channel spacing:
6.25 kHz, 12.5 kHz, 25 kHz
Physical Characteristics
Dimensions H x W x D (with standard battery)
5.26 x 2.37 x 1.72
Weight (with standard battery)
9.17 oz
Keypad / Keys
Model 2 Backlight keypad, 3 soft keys, 4 direction Navigation key, Home and Data buttons
Model 3 Backlight keypad, 3 soft keys, 4 direction Navigation key, 4x3 keypad, Home and Data buttons
Display
Full bitmap color LCD display, 3 lines of text x 14 characters, 1 line of icons, 1 menu line x 3 menus,
White backlight
User Environment
Operating temperature
-30ºC / +60ºC
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP54, IP67
Simplified controls
With two dedicated control knobs, one for volume and the other for channel and talkgroup selection, you can operate the radio by touch, even in complete darkness
Integrated GPS
Enables accountability and location tracking of an individual, which can be sent to a map-based location application. Optional feature and requires ASTRO 25 Integrated Voice and Data.
Encryption
Optional FIPS 140-2 Level 3 AES certified hardware encryption provides tamper-proof security to ensure secure communications.
Text messaging
Offers a freeform or canned messaging solution so you can efficiently and discreetly send and receive messages. Optional feature and requires ASTRO 25 Integrated Voice and Data.
Over-the-air programming
Motorola's POP25 solution allows portable and mobile radios to be programmed over the air via the ASTRO 25 systems while remaining in the field. Optional feature and requires ASTRO 25 Integrated Voice and Data.
Motorola IMPRES Two-way Batteries
 | NNTN8128 IMPRES Li-ion 2000 mAh Slim, Submersible, Battery-IP67 |
 | NNTN8560 APX 4000 two knob radio IMPRES Hi-Cap Li-ion 2500 mAh battery Submersible (IP57), Intrinsically Safe (TIA4950) |
 | PMNN4424 IMPRES Li-ion 2350 mAh Submersible, Battery-IP67 |
 | PMNN4448 IMPRES Li-ion 2800 mAh Submersible, Battery-IP67 |
[an error occurred while processing this directive]
Desktop, Single & Multi-unit Chargers
 | PMPN4174 IMPRES Single-Unit Charger, 115V |
 | PMPN4284 IMPRES Multi-Unit Charger, 115V |
 | BR000272A01 Wall mount bracket for PMPN4284 Charger |
Vehicular, Travel Chargers & Vehicular Adapter (VA)
 | NNTN7616 IMPRES Single-Unit Rapid Rate Vehicular Charger |
 | NNTN8525 Travel Charger with voltage regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord |
 | 3075336B17 Replacement Coil Cord Kit for HMN4104, 4103 and 4101 |
 | HMN4101 IMPRES RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
 | HMN4103 IMPRES Display RSM with Audio Jack, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
 | HMN4104 IMPRES Display RSM with Audio Jack, Channel Selector, Volume Control, 2-Programmable Buttons and Orange Button. Windporting, Rugged, Submersible (IP68) |
 | MDRLN4941 - APAC Receive-only earpiece with comfort eartube. Extra loud audio output |
| NMN6271 IMPRES XP RSM with Dual Mic Noise Suppression, Volume Control, 1-Programmable Button and Orange Button, Rugged, Submersible (IP68) |
| NMN6274 IMPRES XP RSM with Dual Mic Noise Suppression, 3.5mm threaded jack, Volume Control, 1-Programmable Button and Orange Button (IP55) |
 | NNTN4990 D Ring Swivel Clip (12 pack) |
| NNTN6610 XP RSM Replacement Cable with Audio Jack |
| NNTN6611 XP RSM Replacement Cable without Audio Jack |
 | PMKN4107 Display RSM Interface Cable, 5-Pin Nexus Female Receptacle |
 | PMKN4112 Display RSM Interface Cable, 4-Pin Nexus Male Plug |
 | PMKN4113 Display RSM Interface Cable, 12-Pin Hirose Male Connector |
 | PMLN6716 Vehicular Charger |
 | PMLN7120 Dual Unit Charger, rapid rate charger, 120V (US Plug) |
 | PMMN4062 IMPRES RSM with NON-Threaded Audio Jack, Orange Button, Noise Cancelling (IP54) NOT INTENDED FOR FIRE MARKETS |
 | PMMN4065 IMPRES RSM with Volume Toggle Switch, Orange Button and 1-Programmable Button, Windporting (IP57) |
 | PMMN4069 IMPRES RSM with NON-Threaded Audio Jack, Windporting (IP55) |
 | PMMN4083 IMPRES RSM Windporting, Rugged (IP68) |
 | PMMN4084 IMPRES RSM with 3.5mm Threaded and NON-Threaded Audio Jack and Orange Button. Noise Cancelling (IP54) NOT INTENDED FOR FIRE MARKETS |
 | PMMN4099 IMPRES Windporting RSM with Volume Toggle Switch, Orange Button, 3.5mm NON-Threaded Jack (IP55) |
 | PMNN4461 Wireless RSM Battery, 1750 mA Li-Ion |
| RLN4941_XL - NA Receive-only earpiece with comfort eartube. Extra loud audio output |
| RLN5313_XL Receive-only earpiece, loud version. Required BDN6783 or NMN6274 |
 | RLN6075 Replacement Coil Cord Kit for PMMN4062, PMMN4065, PMMN4069 and PMMN4099 |
 | RLN6544 Wireless RSM with Battery and Clip |
 | RLN6554 Wireless RSM with Battery, Clip (RLN6544) and Dual Unit Charger (PMLN7120) |
